Sleeve Boom 810

This inflatable sleeve sprayer is a strategic solution for uniform and efficient crop protection.
Its large-capacity tank and powerful airflow system ensure consistent application and wide coverage during intensive field operations.

  • Large capacity tank for extended spraying
  • Powerful airflow for uniform coverage
  • Minimal spray drift
  • Manual electric or computer control
  • Wide working coverage up to 24 meters

Sleeve Boom 810

This inflatable sleeve sprayer is a strategic solution for uniform and efficient crop protection.
Its large-capacity tank and powerful airflow system ensure consistent application and wide coverage during intensive field operations.

  • Large capacity tank for extended spraying
  • Powerful airflow for uniform coverage
  • Minimal spray drift
  • Manual electric or computer control
  • Wide working coverage up to 24 meters

Technical information

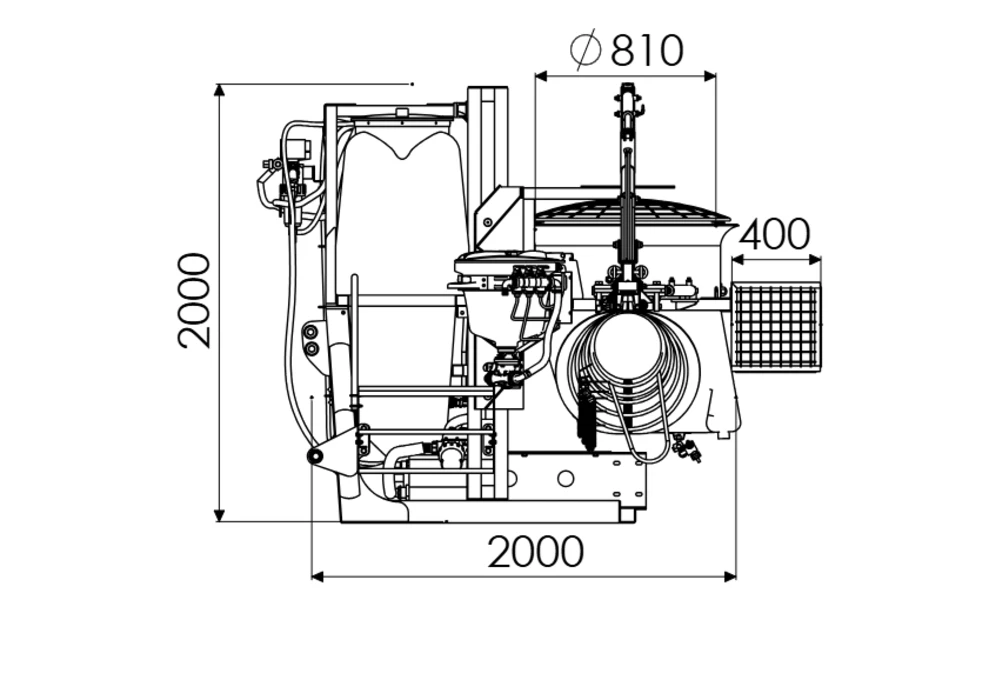

Dimensions

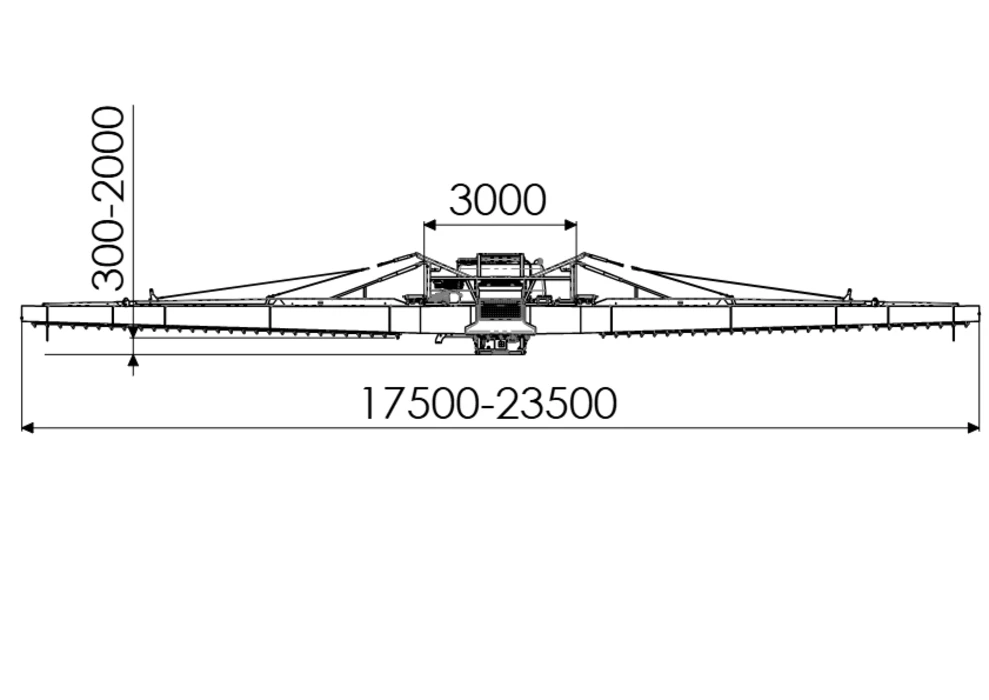

Arm Length 18 – 24m
Nozzle Spacing 25-50 cm
Rear tank capacity 1000;1500;2000L
Front tank capacity 850;1000;1500 L
Blower Diameter 810mm
Air Speed up to 40 m/s
PTO Requirement Minimum 90 HP
Control Computer 3-7 section with GPS
Valves ARAG or BERTOLINI electric valves
Nozzle Type Hollow cone / flat fan nozzles, selected by client
Pump (tank 1000L) CK110 piston
Pump (tank 1500,2000l) PA154 diaphragm
Pump Flow Up to 154 L/min
Shock Absorbers Installed on arms for vibration reduction
Arm Balancing System Stabilizers to prevent breakage, balance control
Hydraulic Cylinders 5 cylinders with mechanical or electric selector block
Drive System Gearbox and cardan shafts or hydraulic motor with radiator
Safety Units Right and left complete safety assemblies
Cables & Springs Support and retention system for arms
Inflatable Sleeves Air sleeves mounted on spray arms
Rims & Flutes Sets Included accessories for distribution
Pumps Bertolini CK110;PA154
Lighting for arms Optional
Mixer for adding Optional
Water dispenser Optional
Tank rear Polyethylene (1000L), stainless steel (1500;2000L)
Tank front Stainless steel
Arms Stainless steel, with tarp sleeve
Sleeves Reinforced PVC inflatable sleeves
Blower Housing Plastic
Frame Steel, anti-corrosion coated
