This self-propelled greenhouse sprayer is designed for precise spraying in narrow tunnels and confined greenhouse rows.
Its compact dimensions, 4×4 drive, and high spraying reach ensure efficient coverage of tall crops with excellent maneuverability.
This self-propelled greenhouse sprayer is designed for precise spraying in narrow tunnels and confined greenhouse rows.
Its compact dimensions, 4×4 drive, and high spraying reach ensure efficient coverage of tall crops with excellent maneuverability.

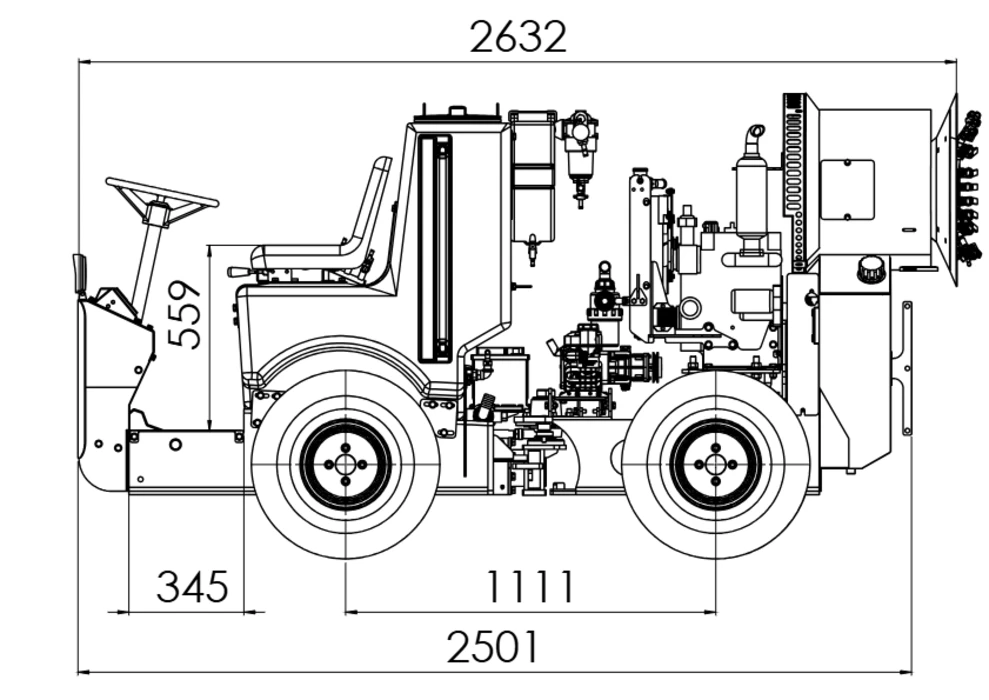

| Length | 2.5 m |
|---|---|
| Machine width | 0.7 m (with optional balloon wheels — 0.8 m) |
| Tire width | 17 cm |
| Spraying height | Up to 4.5 m |
| Fan diameter | 400 mm |
| Number of fan blades | 10 |
| Minimum turning radius | 1.5 m |
| Tank capacity | 200 L |
| Diesel tank | 20 L |
| Machine weight | 700 kg |
| Number of nozzles | 26 |
|---|---|
| Nozzle type | Conical, 80° angle |
| Number of arches | 2 |
| Spray control type | Mechanical |
| Valve type | Mechanical |
| Airflow speed | 40 m/s |
| Airflow height | Up to 4 m |
| Pump flow rate | 30 L/min |

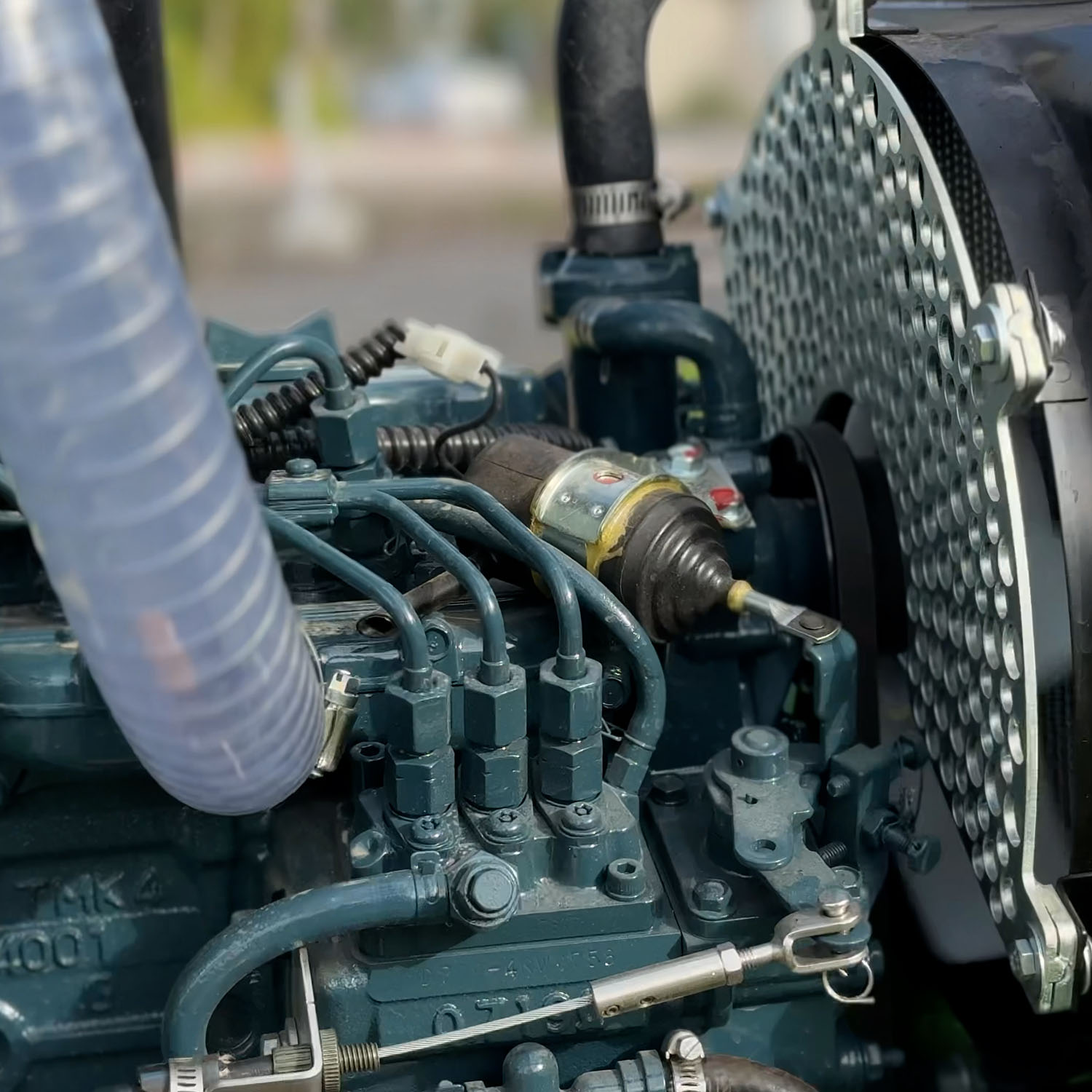

| Engine | Kubota, 3-cylinder (Japan) |
|---|---|
| Engine power | 21 HP (PTO) |
| Drive system | Hydraulic 4x4 with 50/50 flow distribution |
| Pump | BERTOLINI 330, diaphragm type, with continuous agitation |
| Lights | Front and rear |
| Machine frame | Steel with anti-corrosion coating |
|---|---|
| Tank body | Polyvinyl chloride (PVC) |
| Hoses | PVC |
