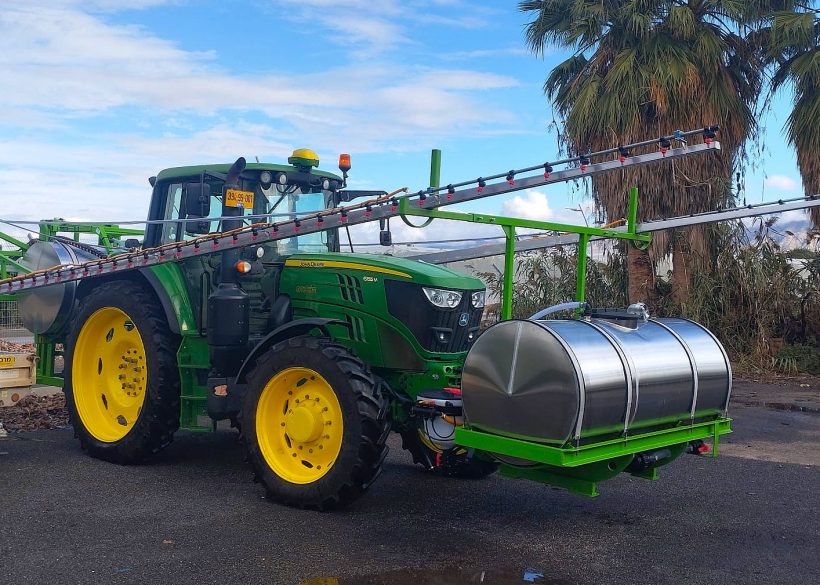

- Reinforced stainless steel spraying shafts, at a variable length of 18-24m.
- Spraying shafts with elevation control by a hydraulic piston.
- Perfect balance of shafts during spraying, even with side slopes.
- Efficiency – excellent foliage penetration and coverage by the sprayed material. Spraying speed up to 15 km/h.
- Output – high work output.
- Flexibility – can spray varied disease and pest control materials.
- Unique nozzle housing adapted to high pressure.
- Ceramic 110 L/m piston pump.
- Option for a frontal tank of up to 1000 L, synchronized with the trailing tank by a pump for an 400L output.
Technical Specifications
| Control | Mechanical/ Electronical/ Computerized |
|---|---|
| Number of Nozzles | 36 |
| Distance between Sprinklers | 500 mm |
| Type of Nozzles | Albuz ceramic |
| Length of arm | 18 m |
| Folding | 7 sections |
| PTO Horsepower | 540 |
| 3 point harness | 3 point harness |
| Length, Width, and Height Measurements in meters | Length 2 m, width 1 m, height 2 m |
| Tank Size in Liter | 1000 l |
| Tank Material | polyethylene |
| Mixer for mixing materials | 5 section electric faucet spraying system with Arag computer |
| Pump size L/m | 120 l/min |
| Pump Type | Piston - Bertolini |
