SPRAYERS / FIELD CROPS /…

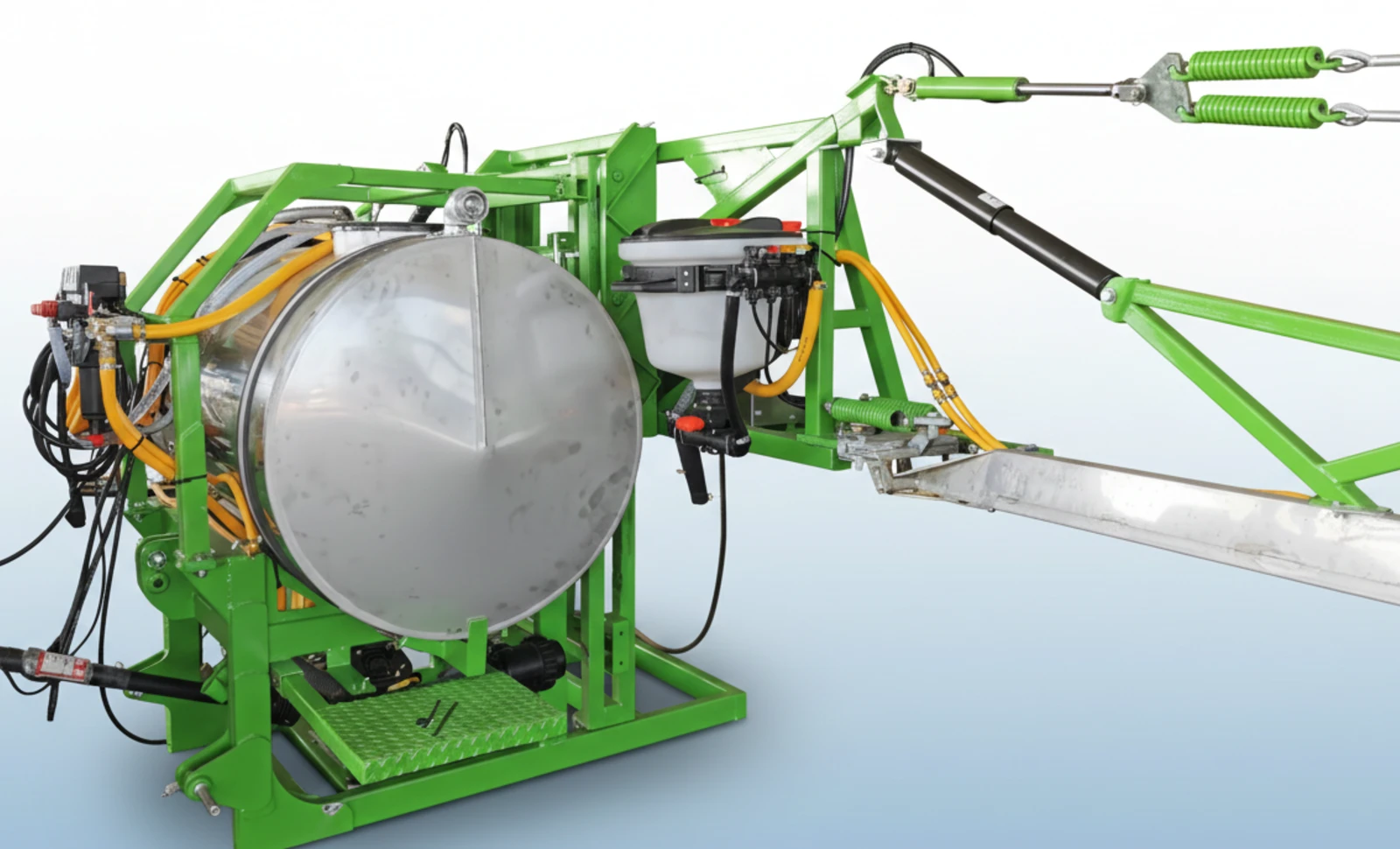

This three-point arm sprayer is designed for intensive field operations, delivering wide coverage, high stability, and reliable performance.
Its reinforced frame and advanced stabilization system ensure precise spraying under demanding working conditions.
This three-point arm sprayer is designed for intensive field operations, delivering wide coverage, high stability, and reliable performance.
Its reinforced frame and advanced stabilization system ensure precise spraying under demanding working conditions.
| Tank Capacity (options) | 1000 L (PE)/ 1500,2000 L (SS) |
|---|---|
| Boom Length (folded) | 18/20/24m (folding) |
| Nozzle Spacing | 25 cm or 50 cm |
| Optional Front Tank | Up to 1500 L |
| Pump (tank 1000L) | Piston 105 L/min |
|---|---|
| Pump (tank 1500,2000) | Diaphragm 150 L/min |
| Nozzle Type | Albuz ceramic |
| Pressure | up to 50 bar |
| Control Options | Manual / Electric/ Computer |
| Mounting | Quick-hitch or 3-point linkage |
|---|---|
| Boom Folding | 2-section folding |
| Height Adjustment | Hydraulic cylinder |
| PTO Requirement | 540 PTO |
| Pumps | Bertolini CKA-110-P/PBO 1540.1 VD |
| Stabilization system | Double spring stabilization |
| Hydraulic control selector | Mechanical or electric selector |
| Metal support cables | Steel cables supporting arms |
| Damping springs | Boom damping with springs |
| Control Computer | with 3-7-section control |
| GPS Antenna | Optional with computer |
| Large chemical basket | Integrated basket for chemicals |
| Front Arms Holder ('Wings') | Optional front holder |
| Lighting for arms | Optional |
| Mixer for adding | Optional |
| Water dispenser | Optional |
| Tank | Plastic PE or Stainless steel |
|---|---|
| Boom | Stainless steel arms (18-24 m) |
| Frame | Reinforced steel |
| Basket | Stainless steel |
| Hoses | PVC |
